Simple Construction
Routine adjustment, inspection and spare-part replacement are designed to remain practical for factory operators.
WOOSUNG MACHINERY CO. · MADE IN KOREA SINCE 1979
SH-K01 Medium-Speed Paper Cup Machine Series
Reliable, easy-to-maintain paper cup forming machines for manufacturers who want stable daily production without unnecessary operating complexity.
Compare the SH-K01 ultrasonic model, the compact SH-K02 for small paper cups, the SH-K02H handle-type machine, and the SH-K01D double-wall outer sleeve system. Photos and operating videos on this page show the actual machinery and production technology.
75–80CUPS/MIN · 7oz SH-K01 / SH-K02
UltrasonicSH-K01 MAIN SIDE SEALING
No CompressorSIMPLER FACTORY INSTALLATION
Since 1979KOREAN MACHINERY ENGINEERING
MEDIUM-SPEED PAPER CUP FORMING MACHINES
01
02
03
04
Stable Production, Practical Maintenance and Clear Machine Selection
A paper cup machine should be easy to understand before purchase and practical to operate after installation. The SH series is built around straightforward mechanics, reliable sealing and production stability.
Operator-Friendly
After basic training, the machine is intended to be straightforward to run without unnecessary operating complexity.
No Air Compressor
SH-K01 and SH-K02 configurations do not require a separate compressor, simplifying auxiliary factory requirements.
Made for Daily Production
Woosung focuses on forming stability, durable sealing components and maintainability for real production environments.
MODEL SH-K01
75–80 CUPS/MIN · 7oz
SH-K01 Medium-Speed Paper Cup Forming Machine
A versatile paper cup machine using hot-air preheating and ultrasonic main sealing for stable production with a broader range of coated papers.

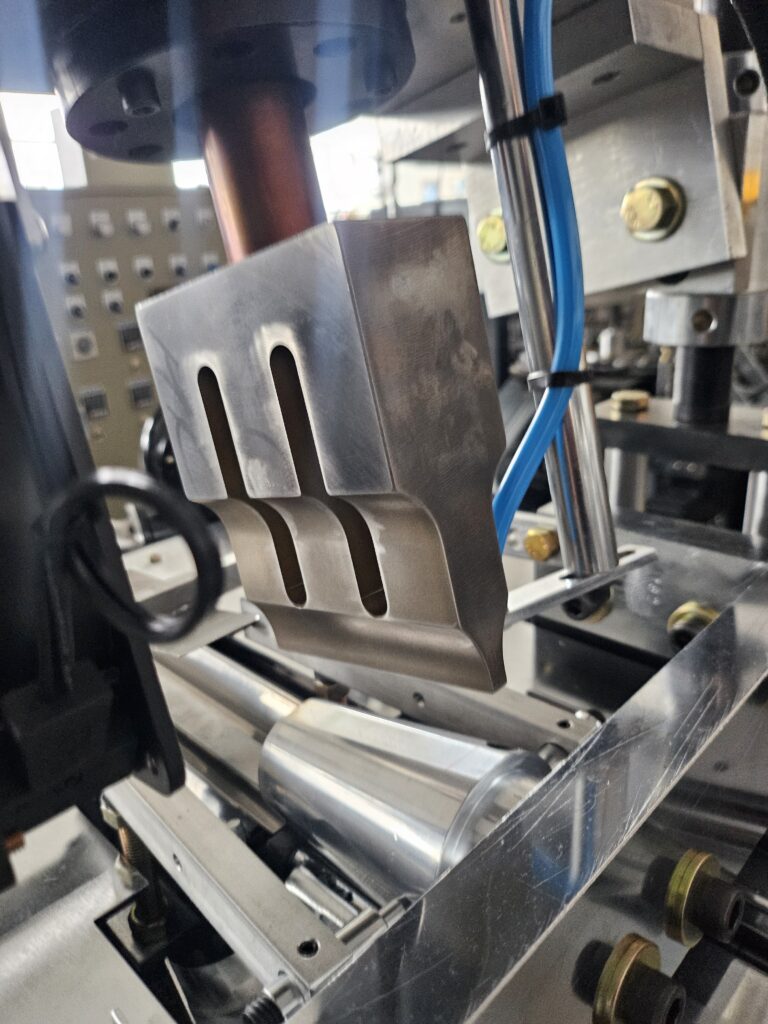

DURABLE ULTRASONIC SEALING
Strong Sealing Components for Consistent Cup Production
Paper jams and excessive pressure can place sudden load on an ultrasonic sealing unit. SH-K01 uses a durable metal sealing structure designed for dependable operation and efficient ultrasonic energy transfer during sidewall sealing.
- Hot-air preheating before ultrasonic main sealing
- Double-stage side sealing process
- Hot-air bottom sealing
- Compatible with several coated-paper types

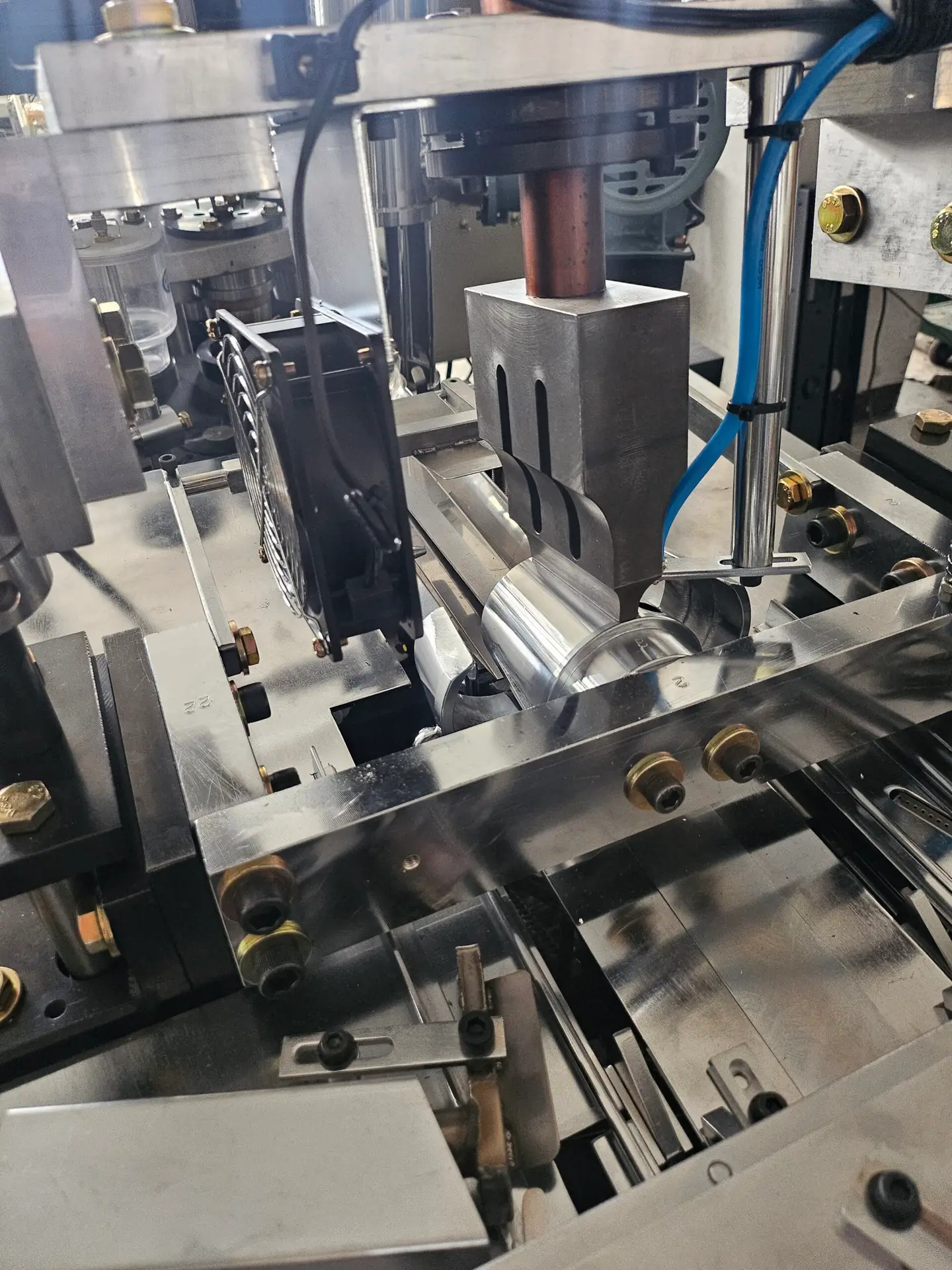

Double-Stage Side Sealing
Hot air preheats the coated paper before ultrasonic main sealing forms the sidewall seam.

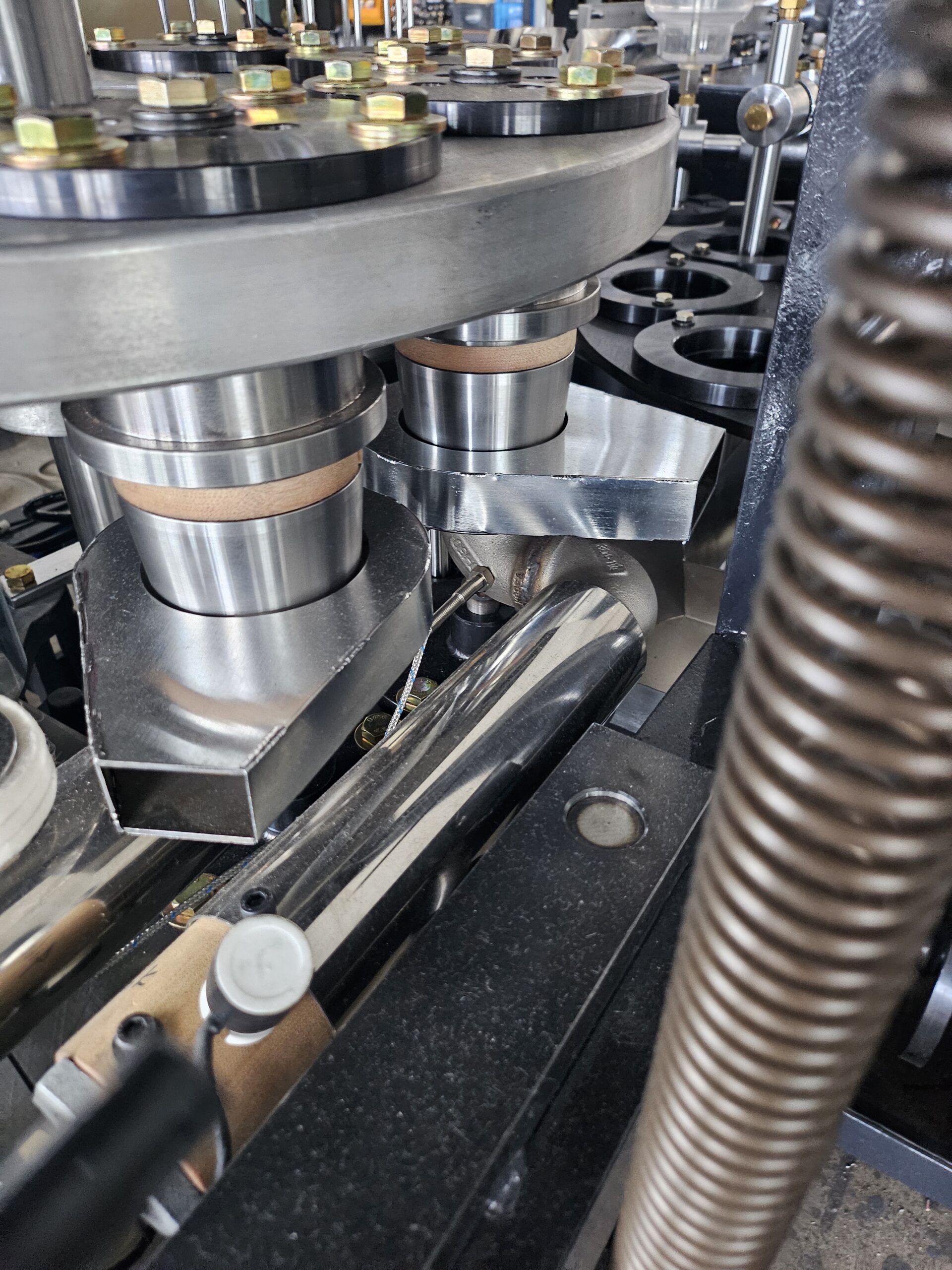

Hot-Air Bottom Sealing
The cup bottom is heat sealed as part of the forming process for stable cup-base bonding.

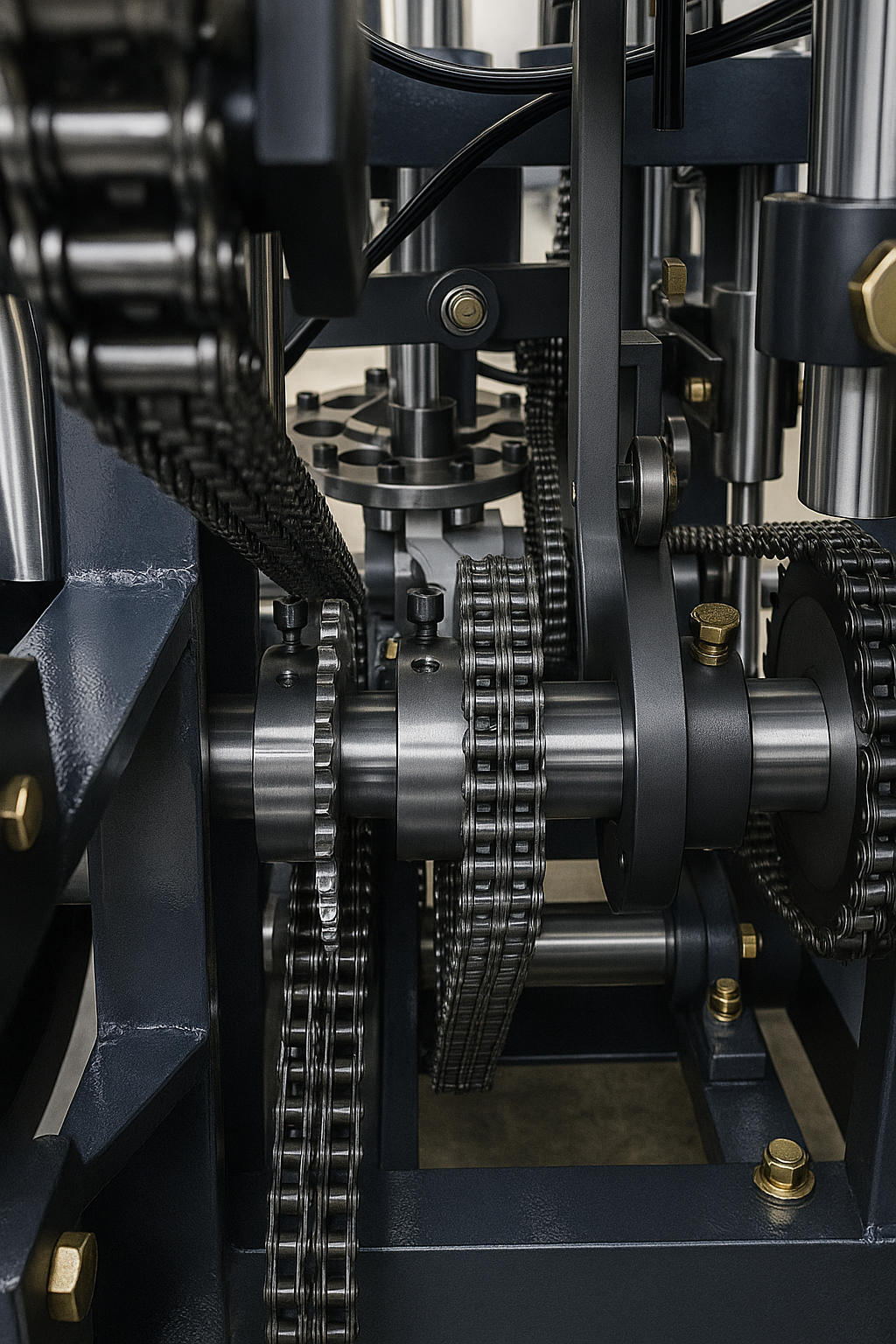

Simple Mechanical Structure
A straightforward transmission layout supports practical inspection, adjustment and maintenance.
Model
SH-K01
Production Speed
75–80 cups/min based on 7oz cups; up to approximately 70 cups/min based on 12oz cups
Side Sealing
Hot-air preheating + ultrasonic main sealing
Bottom Sealing
Hot-air sealing
Compatible Coatings
PLA, PBS, PE single-side, PE double-side, water-based PE
Compatible Paper
Single-side and double-side coated paper
Speed Control
Inverter
Start-Up Power
20 kW
Air Compressor
Not required
PLAPBSSingle-Side PE
Double-Side PEWater-Based PE
MODEL SH-K02
75–80 CUPS/MIN · 7oz
SH-K02 Small Paper Cup Machine
A practical machine for standardized small paper cups using single-side PE coated paper and a straightforward metal-heater sealing configuration.
Optimized for Small-Cup Production
SH-K02 is intended for manufacturers producing common small paper cups for water, tea and similar applications. Its simpler sealing system and mechanical structure make it suitable for standardized production where practical maintenance is a priority.
- Hot-air preheating + metal-heater main side sealing
- Metal-coil heater bottom sealing
- Single-side PE coated paper
- No separate air compressor required
Model
SH-K02
Production Speed
75–80 cups/min based on 7oz cups
Side Sealing
Hot-air preheating + metal heater main sealing
Bottom Sealing
Metal coil heater
Compatible Coating
PE only
Compatible Paper
Single-side coated paper
Speed Control
Inverter
Start-Up Power
8 kW
Air Compressor
Not required
MODEL SH-K02H
HANDLE CUP SYSTEM
SH-K02H Handle-Type Paper Cup Forming Machine
An integrated paper cup system that forms the cup and automatically cuts, forms and attaches the paper handle within the production process.

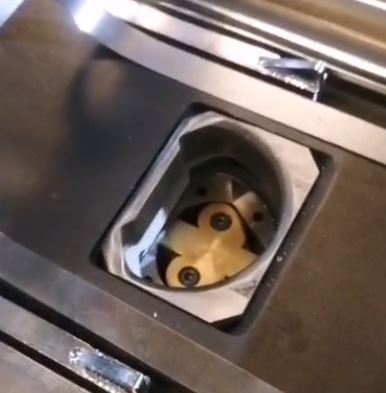

Automatic Handle Forming and Attachment
SH-K02H combines conventional paper cup forming with automatic handle processing, reducing secondary manual handling while keeping the machine structure practical for daily production.
- Automatic handle cutting and forming
- Handle attachment by cartridge metal heater
- PE single-side coated paper
- Inverter-controlled production
Model
SH-K02H
Production Speed
75–80 cups/min based on 7oz cups
Side Sealing
Hot-air preheating + metal heater main sealing
Bottom Sealing
Metal coil heater
Handle Sealing
Cartridge metal heater
Compatible Coating
PE only
Compatible Paper
Single-side coated paper
Speed Control
Inverter
Start-Up Power
8 kW
MODEL SH-K01D
UP TO 60 CUPS/MIN
SH-K01D Double-Wall Paper Cup Outer Sleeve Machine
A dedicated outer-wall forming system for double-wall paper cups used for coffee, tea and other hot-beverage applications requiring added insulation and rigidity.
Outer Sleeve Forming + Inner Cup Bonding

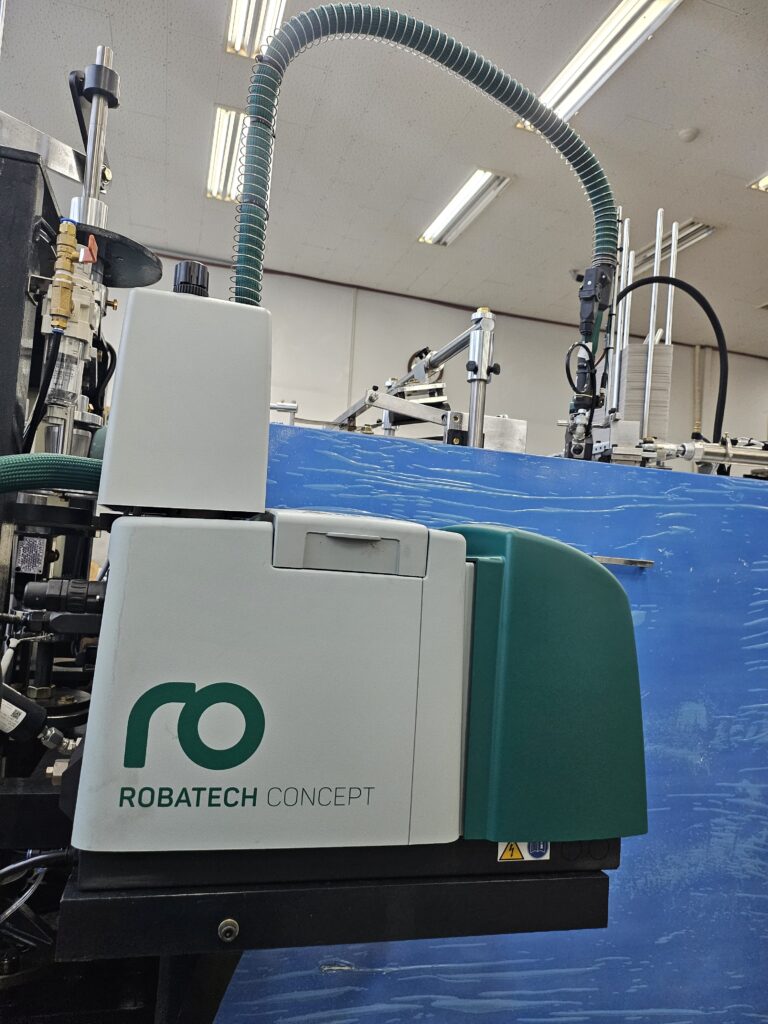

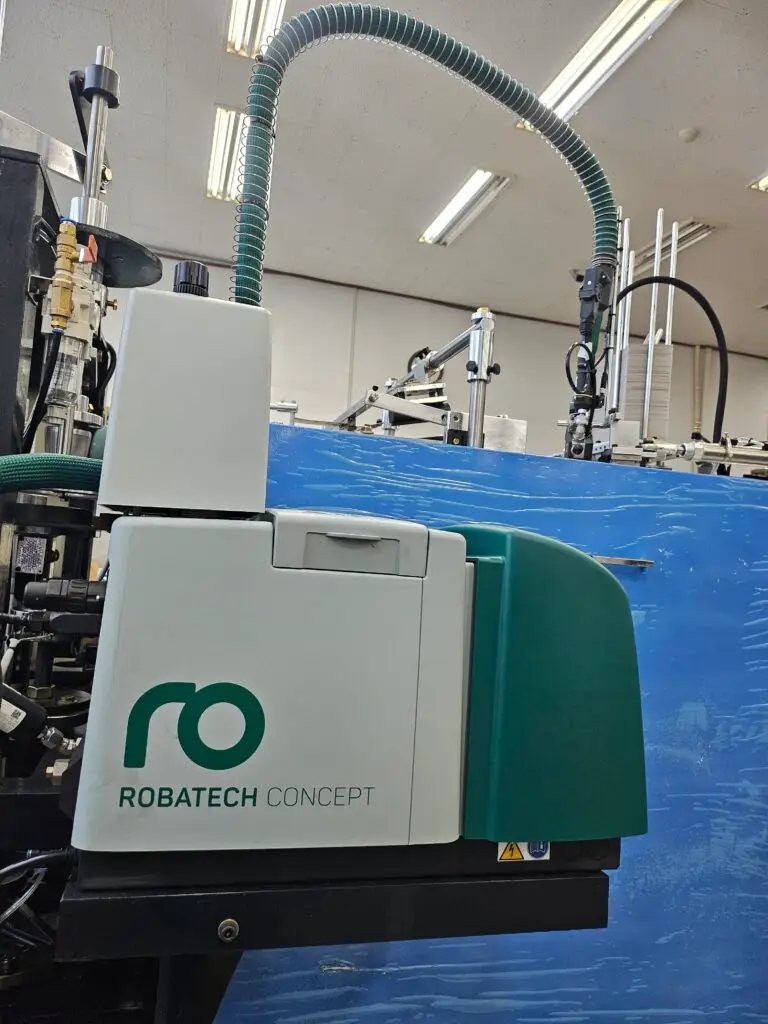

SH-K01D forms the non-coated cardboard outer sleeve, seals the sleeve side with hot-melt adhesive and bonds the finished sleeve to the inner paper cup using cold glue.
- Hot-melt adhesive for outer sleeve side sealing

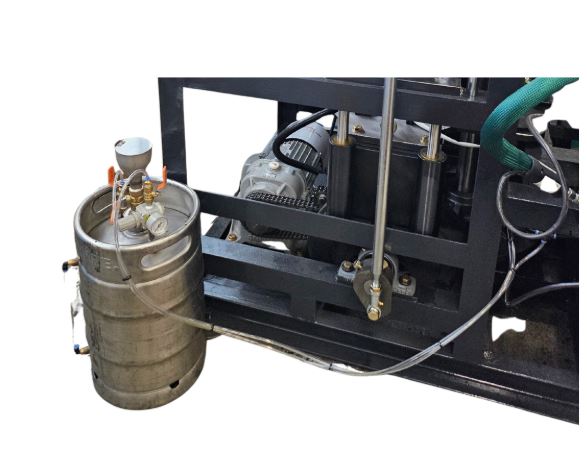

- Cold glue for inner-cup bonding
- Designed for double-wall hot-drink cups
- Inverter-controlled production speed
Model
SH-K01D
Application
Outer sleeve forming for double-wall paper cups
Production Speed
Up to 60 cups/min
Outer Sleeve Side Sealing
Hot-melt adhesive
Inner Cup Bonding
Cold glue
Compatible Paper
Non-coated cardboard paper for outer sleeve
Speed Control
Inverter
Start-Up Power
12 kW
MODEL SELECTION GUIDE
Compare SH-Series Paper Cup Machines
The right model depends on cup size, coating, sealing method and the finished product you need to manufacture.
| Specification | SH-K01 | SH-K02 | SH-K02H | SH-K01D |
|---|---|---|---|---|
| Primary Application | Standard coated paper cups | Small PE paper cups | Handle-type cups | Double-wall outer sleeves |
| Production Speed | 75–80/min at 7oz; up to ~70/min at 12oz | 75–80/min at 7oz | 75–80/min at 7oz | Up to 60/min |
| Main Side Sealing | Ultrasonic | Metal heater | Metal heater | Hot melt |
| Bottom Sealing | Hot air | Metal coil heater | Metal coil heater | Not applicable to sleeve |
| Paper / Coating | PLA, PBS, PE, water-based PE | Single-side PE | Single-side PE | Non-coated cardboard sleeve |
| Special Function | Broad coating compatibility | Small-cup production | Automatic handle forming | Double-wall sleeve forming |
Confirm the final configuration with your actual cup drawing, paper GSM/thickness, coating specification and required production output.
PAPER CUP MACHINE MANUFACTURER IN KOREA
Direct Technical Communication from Woosung Machinery
Woosung Machinery Co. has developed paper cup production equipment in Korea since 1979. We support customers who are starting production, expanding capacity or replacing older machinery.
Manufactured in Korea
Paper cup machinery engineering, assembly and technical communication from Woosung Machinery.
Machine Selection Support
Send your actual cup dimensions and paper specification so the machine can be reviewed for your application.
Complete Production Equipment
Related equipment includes paper blank punching, flexo printing and automatic paper cup packing systems.
BUYER FAQ
Questions Before Buying a Medium-Speed Paper Cup Machine
What is the production speed of the SH-K01 paper cup machine?
SH-K01 is designed for approximately 75–80 cups per minute based on 7oz cups and up to approximately 70 cups per minute based on 12oz cups. Actual output varies with cup dimensions, paper condition and machine settings.
What is the difference between SH-K01 and SH-K02?
SH-K01 uses hot-air preheating and ultrasonic main side sealing and supports a broader range of coatings. SH-K02 is optimized for smaller cups and uses a metal-heater sealing configuration with single-side PE coated paper.
Does SH-K01 and SH-K02 require an air compressor?
No. The SH-K01 configuration does not require a separate factory air compressor, simplifying auxiliary installation requirements.
Can SH-K01 run PLA or water-based coated paper?
SH-K01 is available with PLA, PBS, single- and double-sided PE coated paper, and water-based PE. The exact paper specification should be reviewed before final setup. But SH-K02 is only available with normal PE coating
Which model is suitable for small paper cups?
SH-K02 is optimized for small paper cups using single-side PE coated paper. SH-K01 is the more versatile option when broader coating compatibility or different cup applications are required.
Which model makes paper cups with handles?
SH-K02H integrates cup forming with automatic handle cutting, forming and heat attachment in one production system.
Which model is used for double-wall paper cups?
SH-K01D forms the outer sleeve for a double-wall cup. It uses hot-melt adhesive for the sleeve side seam and cold glue for bonding the outer sleeve to the inner cup.
What information should I send for an accurate quotation?
Send the finished cup drawing or dimensions, side-wall and bottom paper GSM/thickness, coating type, intended cup application and required production capacity.
REAL MACHINE OPERATION VIDEOS
SH-Series Paper Cup Machine Video Gallery
The current YouTube videos are entered manually, so no WordPress video plugin is required. The current manually entered YouTube videos are preserved in this version.
Original SH-series operating videos are displayed below.
SH-K01 Paper Cup Machine
2 VIDEOSSH-K02 Operating Videos
3 VIDEOSSH-K02H Handle-Type Paper Cup Machine
2 VIDEOSSH-K01D Double-Wall Paper Cup Machine
2 VIDEOS
REQUEST A TECHNICAL REVIEW
Tell Us What Paper Cup You Want to Produce
Send your exact cup size, paper specification, coating type and required output. We can review whether SH-K01, SH-K02, SH-K02H or SH-K01D is the appropriate configuration for your project.
