Eco-Friendly Coatings for Paper Cups

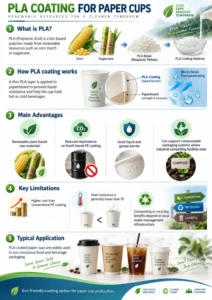

1How Is PLA Coating Made?

The main component of PLA coating is PLA (Polylactic Acid), a bio-based thermoplastic resin. In simple terms, sugars obtained from plant-based raw materials such as corn starch or sugarcane are fermented to produce lactic acid, which is then chemically polymerized to form PLA.

The general manufacturing process is as follows:

PLA is often described as a "plastic made from corn," but technically, corn itself is not coated onto the paper. Rather, sugars derived from plants are fermented into lactic acid, and the lactic acid is then polymerized into a polyester resin.

The basic chemical structure of PLA is derived from lactic acid and consists of repeating ester bonds (-COO-), making PLA an aliphatic polyester. Because of this chemical structure, PLA has different thermal and processing characteristics from conventional petroleum-based polyethylene (PE).

Some PLA coating grades may consist mainly of PLA resin, while industrial formulations may also contain small amounts of additives to improve processing performance. These can include heat stabilizers, slip agents, crystallization modifiers, impact modifiers, or additives designed to improve adhesion and extrusion stability. The exact formulation therefore depends on the specific PLA grade and resin manufacturer.

For paper cup production, PLA resin is melted and applied as a thin layer onto the surface of the paper through an extrusion coating process. This PLA layer acts as a functional barrier that helps prevent the paper from absorbing moisture. During paper cup forming, it also provides the heat-sealing properties required for side sealing and bottom sealing.

2PLA Coating for Paper Cups: Advantages, Limitations, and Suitable Applications

PLA coating is a suitable eco-friendly coating option for paper cup production. It can be applied to paperboard by extrusion coating and provides the liquid and grease barrier required for disposable cups. However, compared with conventional PE coating, PLA generally requires more careful control of material grade, sealing temperature, hot-air or ultrasonic settings, and overall forming conditions.

Compared with PE coating, the main advantage of PLA is that it can be produced from renewable plant-based resources such as corn starch or sugarcane-derived feedstocks. This helps reduce dependence on fossil-based plastics. PLA can also offer industrial compostability when the material and finished product meet the required certification standards and suitable industrial composting facilities are available.

PLA also provides good resistance to water and grease and can be used successfully for many food and beverage packaging applications. For companies seeking more sustainable packaging solutions, PLA can therefore be an attractive alternative to traditional petroleum-based PE coating.

However, PLA also has several disadvantages compared with PE. The material cost is generally higher, and the processing window is narrower. PLA is more sensitive to temperature and sealing conditions, so proper machine adjustment is important. Conventional PE is usually easier to process, more tolerant of production variations, and generally offers better thermal stability.

For this reason, PLA coating is particularly suitable for cold and ambient-temperature applications such as cold drink cups, ice cream cups, yogurt cups, dessert cups, salad containers, and other food packaging. These applications allow the environmental advantages of PLA to be used without placing excessive thermal stress on the coating.

PLA can also be used for hot drink cups such as coffee and tea cups, provided that an appropriate cup-grade PLA resin is selected and the cup forming and sealing conditions are properly optimized. In such cases, actual leakage, side-sealing, bottom-sealing, delamination, and heat-resistance tests should be carried out before mass production.

For applications involving very high temperatures, prolonged hot-food contact, soup containers, or microwave heating, conventional PLA may be less suitable than PE unless a specially formulated high-heat PLA or modified biopolymer is used.

In summary, PLA coating is a good choice for environmentally conscious paper cup production, especially for cold drinks and general food packaging. Compared with PE, it offers advantages in renewable raw material use and potential compostability, while PE still has advantages in lower cost, easier processing, and better heat resistance.

3PLA Coating for Paper Cups vs. PE Coating

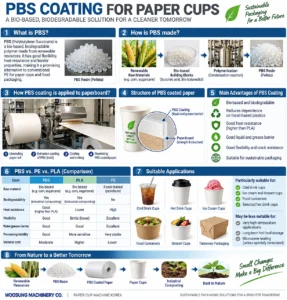

1How Is PBS Coating Made?

PBS (Polybutylene Succinate) is a biodegradable polyester mainly produced from succinic acid and 1,4-butanediol (BDO) through a polymerization process.

A simple production flow is:

For bio-based PBS, succinic acid and/or BDO can be produced from renewable feedstocks such as corn, sugarcane, starch, or other biomass-derived sugars.

However, not all PBS is 100% bio-based. Depending on the manufacturer and raw material source, PBS may be produced from petroleum-based feedstocks, partially bio-based feedstocks, or highly bio-based feedstocks.

For paper cup applications, PBS resin is melted and applied as a thin coating layer on paperboard. This coating provides water resistance, grease resistance, flexibility, and heat-sealing properties.

2PBS Coating for Paper Cups: Advantages, Limitations, and Suitable Applications

PBS (Polybutylene Succinate) coating is an environmentally friendly barrier coating that can be applied to paperboard for the production of paper cups and food containers. It provides good resistance to water and grease while maintaining the flexibility and heat-sealing properties required during the cup-forming process.

Compared with PLA, PBS generally offers better flexibility and higher heat resistance, making it attractive for a wider range of food and beverage applications. However, compared with conventional PE coating, PBS is usually more expensive and may require more careful control of coating quality, sealing temperature, and machine settings.

3Suitable Applications

PBS-coated paperboard is particularly suitable for cold drink cups, ice cream cups, dessert cups, yogurt cups, takeaway food containers, and general food packaging. Because PBS has better thermal performance than standard PLA, appropriately selected PBS grades can also be considered for coffee cups, tea cups, and other hot-drink applications.

For very high-temperature foods, prolonged exposure to hot liquids, or microwave applications, the specific PBS grade and finished container should be carefully tested before commercial production.

4Conclusion

PBS coating offers a good balance between environmental performance, flexibility, heat resistance, and barrier properties. It can be a practical alternative to conventional PE coating for manufacturers seeking more sustainable paper cup solutions.

However, PE still has advantages in lower material cost, wider processing tolerance, established supply chains, and highly stable mass-production performance. Therefore, the choice between PBS and PE should be based on the intended cup application, required temperature resistance, environmental objectives, material availability, and production cost.

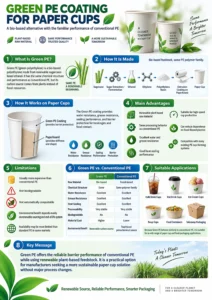

1How Is Green PE Coating Made?

Green PE (Green Polyethylene), also called bio-based polyethylene, is chemically the same polyethylene used in conventional PE coating, but part or all of its carbon comes from renewable biological resources rather than fossil petroleum or natural gas. One of the best-established commercial routes uses sugarcane-derived ethanol as the starting material.

A simplified production pathway is:

2Renewable Raw Material

Sugarcane is commonly used because it contains fermentable sugars that can be efficiently converted into ethanol. During cultivation, the plant takes in atmospheric CO₂ through photosynthesis and stores carbon in its biomass. After harvesting, the sugarcane is transported to a mill where sugar-rich juice is extracted.

In modern sugarcane mills, the remaining fibrous material, known as bagasse, can also be burned to produce steam and electricity for the production facility.

3Sugar Is Fermented into Bioethanol

The extracted sugars are fermented using microorganisms such as yeast to produce bioethanol.

This ethanol is then purified before being sent to the chemical production stage.

4Bioethanol Is Converted into Bio-Ethylene

This is one of the most important stages in Green PE production.

Ethanol is converted into ethylene through a catalytic dehydration reaction, which removes a molecule of water:

The resulting molecule is chemically the same ethylene used to manufacture conventional polyethylene. The key difference is its carbon origin: it comes from biomass rather than fossil feedstock.

5Bio-Ethylene Is Polymerized into Green PE

The bio-ethylene molecules are then linked together through polymerization:

The resulting material is polyethylene.

This means that once polymerization is completed, Green PE has essentially the same polymer structure as conventional fossil-based PE. This is why bio-based PE is often called a “drop-in” bioplastic: manufacturers can obtain renewable-source benefits without fundamentally changing the polymer they already use.

6Green PE Is Produced as Resin Pellets

After polymerization, Green PE is normally supplied as plastic resin pellets.

For paper cup applications, the manufacturer must select an appropriate extrusion-coating grade with suitable melt flow, adhesion, heat-sealing, food-contact, and processing characteristics.

Not every Green PE grade is automatically suitable for paper cup coating, so the resin specification should always be confirmed with the supplier.

7Green PE Is Extrusion-Coated onto Paperboard

The Green PE pellets are fed into an extrusion coating machine, heated until molten, and extruded through a flat die as a very thin polymer film.

The process can be summarized as:

The thin PE layer provides the paperboard with important functional properties such as water resistance, grease resistance, heat sealing, moisture barrier, flexibility and stable converting performance.

8Green PE-Coated Paper Is Converted into Paper Cups

After coating, the paperboard can be printed, die-cut into cup fans, and formed on a paper cup machine.

This is one of Green PE's main practical advantages compared with some other bio-based materials: manufacturers may be able to introduce renewable feedstock while maintaining familiar PE processing behavior.

9Green PE vs. Conventional PE

10An Important Point: Green PE Is Not Biodegradable

Bio-based does not mean biodegradable.

Green PE may be made from sugarcane, but its molecular structure is polyethylene. Therefore, it should not be described as biodegradable or compostable simply because its raw material is plant-based.

11Why Is Green PE Considered More Sustainable?

The environmental advantage of Green PE does not come from faster degradation after disposal. Its main benefit comes from replacing fossil carbon with renewable carbon.

Instead of extracting petroleum or natural gas to obtain the carbon needed for polyethylene, biomass such as sugarcane is grown and converted into ethanol and subsequently into polyethylene.

12Why Green PE Is Attractive for Paper Cups

For paper cup manufacturers, Green PE offers a particularly practical approach to sustainability because it combines renewable raw materials with the familiar properties of polyethylene.

It can potentially be used for Cold Drink Cup, Coffee & Tea Cup, Ice Cream Cup, Soup Cup, Food Container and Takeaway Packaging, subject to the selected resin grade, coating specification, food-contact requirements and finished-product testing.

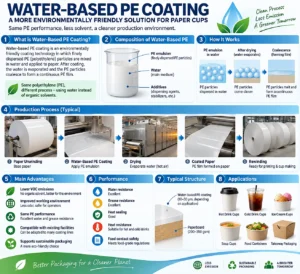

1What Is Water-Based Coating?

Water-based coating is an alternative barrier technology developed mainly to reduce the use of conventional extrusion-laminated PE and to improve the repulpability and recyclability of paper cups. Instead of applying a relatively thick molten polyethylene layer to the paperboard, a water-based coating is applied as a liquid dispersion. During drying, the water evaporates and the remaining polymer forms a thin continuous barrier layer on the paper surface.

2Important Technical Definition

The term “water-based PE coating” is sometimes used commercially, but not all water-based coatings are actually polyethylene. Depending on the supplier, the coating may contain PE dispersions, acrylic polymers, styrene-acrylic polymers, modified polyolefins, waxes, or other water-dispersible barrier materials. Therefore, “Water-Based Barrier Coating” is generally the more technically accurate term unless the supplier confirms that the main polymer is PE.

3Main Purpose of Water-Based Coating

One of the primary purposes of water-based coating for paper cups is to improve the recovery of paper fibers during recycling and repulping. Conventional PE-coated paper cups contain a continuous plastic film that must be separated from the paper fibers during recycling. Water-based coatings can use a thinner and more dispersible barrier layer, which may allow the paperboard to break down more easily during the repulping process.

4Environmental Objective

The main environmental objective is not simply to replace one coating material with another, but to improve the possibility of recovering high-quality cellulose fibers after the cup has been used. However, recyclability depends not only on the coating itself but also on coating chemistry, coating weight, paper structure, printing inks, adhesives, recycling equipment, and the waste-management system available in each market.

5How Water-Based Coating Is Made

The coating normally begins as an aqueous polymer dispersion. A typical formulation may contain water as the main carrier together with polymer particles, dispersing agents, stabilizers, rheology modifiers, waxes, crosslinking agents, and other additives designed to improve water resistance, grease resistance, heat sealing, and surface durability.

6Application to Paperboard

The liquid coating is applied to the paperboard using coating equipment such as rod coating, blade coating, gravure coating, flexographic coating, or other suitable coating systems. The coating must be applied evenly because an uneven surface or pinholes can allow moisture to penetrate the paperboard.

7Drying and Film Formation

After application, the coated paper passes through a drying section. Heat and moving air evaporate the water from the coating. As the water is removed, the polymer particles move closer together and eventually coalesce to form a continuous barrier film over the paper surface.

8How the Barrier Works

Once properly dried and cured, the coating provides resistance against liquid, grease, and moisture. Depending on the formulation, it can also provide sufficient heat-sealing properties for side sealing and bottom sealing during paper cup forming. The coating must remain continuous and well bonded to the paperboard to provide reliable performance.

9Main Advantage: Improved Recycling Potential

The biggest advantage of water-based coating is its potential to improve the recovery of paper fibers. During repulping, certain water-based coatings can break up, disperse, or separate more easily from paper fibers than conventional extrusion PE layers. This may reduce the amount of plastic film that must be removed during recycling and can improve usable fiber recovery.

10Water-Based Coating Is Not Automatically Recyclable

It is important not to claim that every water-based coated paper cup is automatically recyclable. Actual recyclability should be confirmed through recognized repulpability and recyclability testing because performance varies significantly depending on coating chemistry, coating weight, and local recycling facilities.

11Main Limitation: Long-Term Liquid Contact

One of the most important limitations of some water-based coatings is their sensitivity to prolonged liquid exposure. Conventional extrusion PE forms a highly continuous and hydrophobic plastic layer, whereas many water-based coatings use a thinner barrier layer whose performance can depend more strongly on coating formulation, drying quality, and coating weight.

12What Happens During Prolonged Liquid Exposure?

When a water-based coated cup holds water or beverages for an extended period, some coating systems may gradually absorb moisture, soften, swell, or lose part of their barrier performance. It is more technically accurate to say that the coating may gradually lose barrier integrity rather than simply saying that it dissolves in water.

13Risk of Moisture Penetration and Leakage

As moisture penetrates the coating layer, the effective barrier may gradually weaken. Water can then migrate toward the paper fibers, reducing adhesion between the coating and the paperboard. If this continues for a long time, the paperboard may soften and the strength of the side seam or bottom sealing area may decrease, increasing the possibility of leakage.

14Why Holding Time Matters

A paper cup may perform perfectly during the first few minutes of use but behave differently after holding a beverage for several hours. Therefore, the expected holding time is an important consideration when selecting a water-based coating for beverage cups.

15Temperature Also Affects Performance

Hot water, coffee, tea, acidic drinks, sugary beverages, oils, and other food components can interact differently with the coating. A water-based coating that performs well for a short-use cold beverage may not necessarily provide the same performance for a hot beverage held for an extended period.

16Suitable Applications

Water-based coatings can be suitable for many paper cup and food-packaging applications when the correct formulation is selected. Typical applications may include cold drink cups, selected coffee and tea cups, ice cream cups, dessert cups, food containers, takeaway packaging, and other paper-based food packaging.

17Applications Requiring More Care

For soup cups, very hot beverages, prolonged liquid storage, or other demanding food applications, additional performance testing is especially important. A high-performance water-based coating may be suitable, but its actual resistance must be verified under the intended use conditions.

18Water-Based Coating vs. Conventional PE

19Production Requirements

Because water-based coating relies strongly on proper film formation, drying conditions are extremely important. Insufficient drying can result in poor barrier performance, blocking, weak sealing, or reduced adhesion. Incorrect coating weight can also lead to uneven performance or premature barrier failure.

20Important Tests Before Mass Production

Before commercial production, water-based coated paper cups should be evaluated through long-term leakage testing, hot-water resistance testing, Cobb testing, grease resistance testing, seal-strength testing, side-seam testing, bottom-seal testing, edge-penetration testing, wet-durability testing, blocking testing, and actual cup-forming trials.

21Is Water-Based Coating Better Than PE?

It depends on the application. If the priority is maximum liquid resistance, long holding time, highly stable high-speed production, and wide processing tolerance, conventional PE still has important advantages.

22When Water-Based Coating Has an Advantage

If the main objective is reducing conventional plastic lamination and improving paper-fiber recovery and recyclability, water-based coating can be a very attractive solution. Therefore, it should not simply be described as better or worse than PE; it is designed to satisfy a different environmental and packaging objective.

23Conclusion

Water-based barrier coating is mainly developed to improve the recyclability and repulpability of paper cups by reducing dependence on conventional extrusion PE layers. The coating is applied as an aqueous polymer dispersion, and after drying, it forms a thin continuous barrier film that provides water, grease, and heat-sealing performance.

24Key Technical Limitation

Some water-based coatings may be more sensitive to prolonged liquid contact than conventional PE. Over extended periods, moisture can weaken the barrier layer, reduce coating adhesion, soften the paperboard, and increase the possibility of leakage. Therefore, coating formulation, coating weight, drying conditions, beverage temperature, and expected holding time must be carefully evaluated before mass production.

25Key Message
