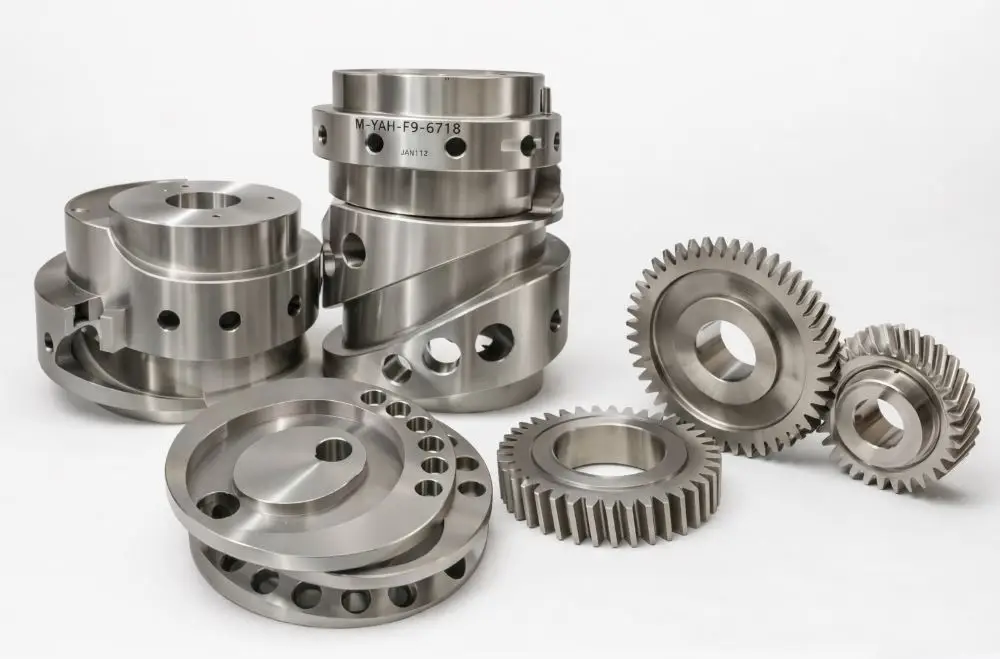

Super-Durable Power Transmission System
Precision-machined cams, gears and transmission components are selected to support reliable mechanical performance under high-speed continuous operation.
Woosung Machinery Co. · Made in Korea Since 1979

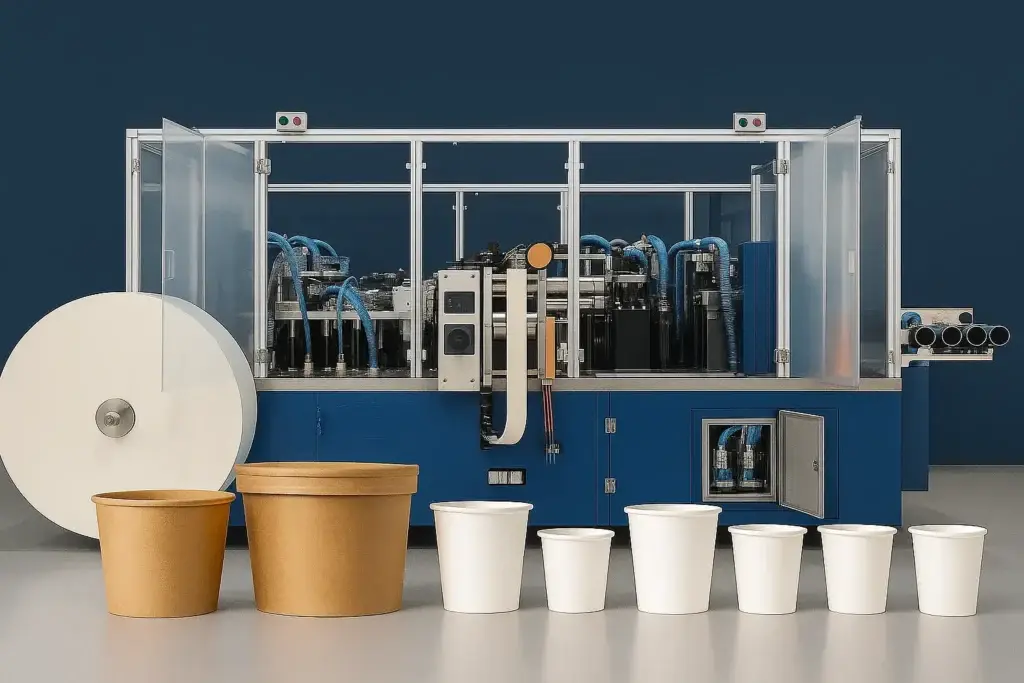

High-Speed Paper Cup Machine WSGP1700
A high-speed paper cup forming machine engineered for stable 180–200 cups/min production, low-vibration operation and long-term industrial reliability.
Precision Mechanical Engineering · Automatic Lubrication · Real-Time Quality Inspection
180–200 CPM
Production Speed
Up to 16oz
High-Speed Application
PE Coated Paper
Compatible Coating
PLC Control
Stable Operation
Auto Lubrication
Reduced Maintenance
ORIGINAL WSGP1700 OPERATING GIF
Proven High-Speed Performance
Built for Stable Production, Not Just Headline Speed
The WSGP1700 is designed to maintain stable output at high operating speed. Its rigid mechanical structure, precision-machined transmission components and controlled forming process are engineered for demanding production environments.
High-speed paper cup production requires more than a fast cycle. Paper feeding, sealing, bottom forming, curling, lubrication and quality inspection must work together consistently throughout extended production runs.
Stable 180–200 cups/min output
Very low-vibration operation
Automatic lubrication system
Integrated quality inspection
WSGP1700 Engineering
Designed for Long-Term High-Speed Paper Cup Production
Every high-speed production system depends on the durability and coordination of its mechanical, sealing, lubrication and inspection systems.
01 · TRANSMISSION
Highly Durable Power Transmission
Robust mechanical transmission components are designed for stable high-speed movement and reduced wear during continuous operation.
02 · STABILITY
Consistent Production Speed
Precision engineering helps maintain stable output throughout extended production instead of focusing only on short-term peak speed.
03 · INSPECTION
Real-Time Quality Inspection
Integrated inspection monitors finished cups and automatically rejects defects before they proceed to packing.
04 · VIBRATION
Very Low-Vibration Operation
Carefully aligned mechanical components and a rigid structure help reduce vibration even during high-speed paper cup forming.
05 · CAPACITY
High Production Capacity
The WSGP1700 is engineered for 180–200 cups/min production, including demanding applications up to 16oz.
06 · MAINTENANCE
Automatic Lubrication System
Critical mechanical points receive automatic lubrication to support smoother operation and reduce routine maintenance requirements.
Precision Components & Quality Control
The Details That Determine Long-Term Machine Performance
High-speed production places repeated loads on every mechanical component. Component quality, machining accuracy and inspection therefore matter over years of operation.

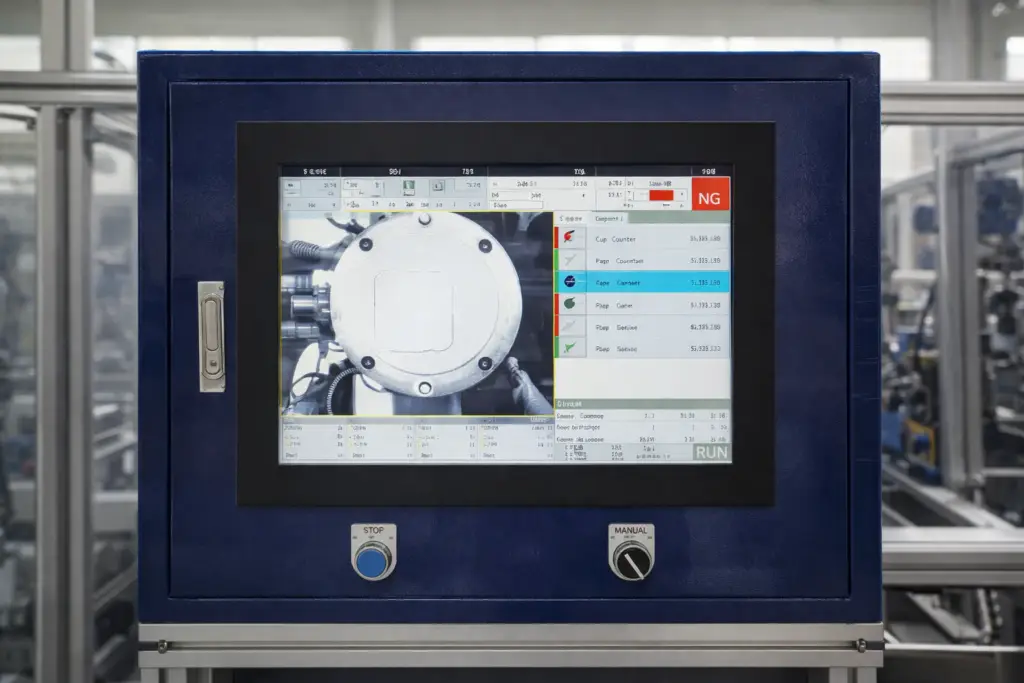

Automatic Paper Cup Quality Inspection
The integrated vision system can detect and reject defective cups, helping maintain consistent finished-product quality without slowing production.
Paper Cup Applications
Built for High-Volume Paper Cup Manufacturers
Machine configuration should be matched to the exact finished cup size, paper thickness, coating specification and intended use. For stable high-speed production, we recommend confirming your actual cup drawing and paper specification before final machine configuration.
Technical Specifications
WSGP1700 High-Speed Paper Cup Machine Specifications
The following values summarize the principal configuration currently shown for the WSGP1700. Final machine setup should be confirmed against the customer's cup drawing, paper thickness and production requirements.
Model
WSGP1700 / WSGP-1700
Production Speed
180–200 cups/min (based on 16oz cups)
Side Sealing
Preheating by hot air + main sealing by long-time press with rotating mold
Bottom Sealing
Hot-air sealing
Compatible Coating
PE coated paper
Paper Type
Single-side or double-side coated paper
Speed Control
Adjustable via inverter
Control System
PLC controller
Start-Up Power
Approx. 35 kW
Lubrication
Automatic lubrication system
Quality Control
Integrated real-time vision inspection system
WSGP1700 Production Video
See the High-Speed Paper Cup Machine in Operation
Watch the original WSGP1700 production video and review the machine's cup-forming process under real operating conditions.

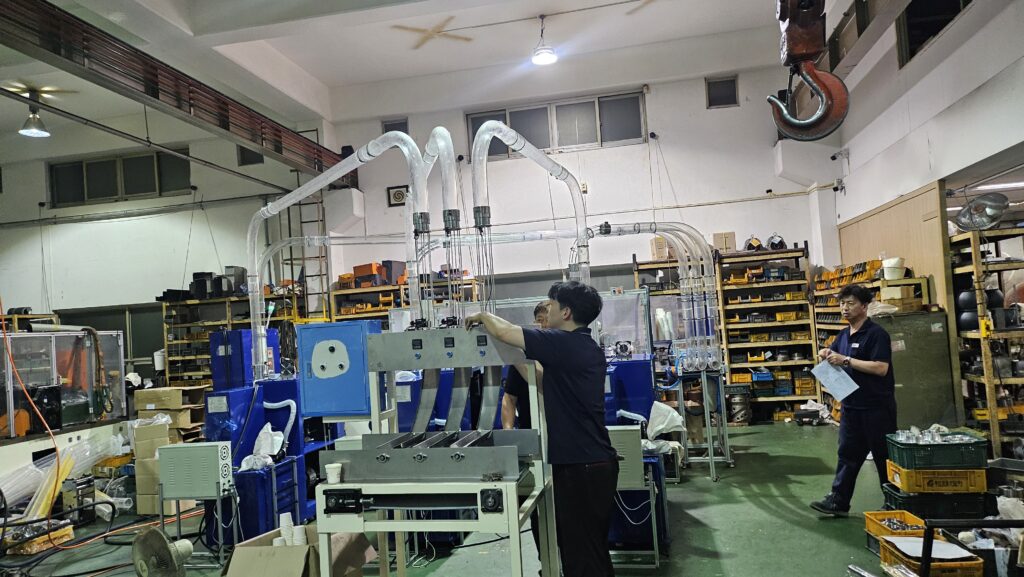

Made in Korea · Since 1979
Built by a Specialist Paper Cup Machinery Manufacturer
Woosung Machinery has focused on paper cup production equipment and mechanical engineering for decades. The WSGP1700 is developed for customers who value production stability, mechanical durability and direct technical support.
Manufactured in Korea
Precision Mechanical Assembly
Direct Technical Communication
Global Customer Support
Compare Paper Cup Machines
Other Woosung Paper Cup Forming Machine Models
Select a machine according to your actual cup size, target production speed, paper specification and required factory capacity.
HIGH-SPEED MODEL
SUPER SH-K01
High-speed paper cup forming machine with quality inspection and durable mechanical design.
HIGH-SPEED MODELMH-K01
130–140 cups/min high-speed paper cup machine for reliable industrial production.
MEDIUM-SPEED MODELSH-K01
Stable medium-speed paper cup forming machine with straightforward maintenance.
Planning High-Speed Paper Cup Production?
Send us your exact cup dimensions, paper specification and required production capacity. We will review your application and recommend the correct WSGP1700 machine configuration.
